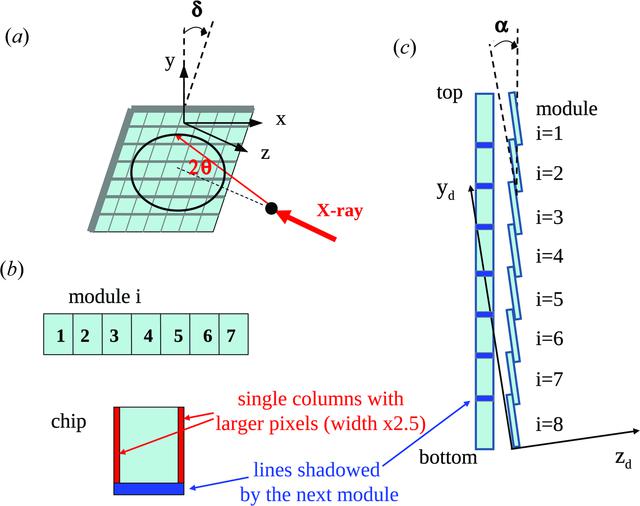

Figure 1
Schematic view of the geometry of the XPAD3.1 detector. (a) Experimental geometry with the tilt angle [delta] between the average surface of the detector and the vertical direction [\bf y]. [2\theta] is the Bragg angle. (b) Description of a single module containing seven chips. (c) Side view of the detector showing the tiling of the modules with the tiling angle [alpha].  [article HTML]
