Synchrotron X-ray diffraction experiments with a prototype hybrid pixel detector

Le Bourlot, C.; Landois, P.; Djaziri, S.; Renault, P.-O.; Le Bourhis, E.; Goudeau, P.; Pinault, M.; Mayne-L'Hermite, M.; Bacroix, B.; Faurie, D.; Castelnau, O.; Launois, P.; Rouzière, S.

doi:10.1107/S0021889811049107

Figure 6

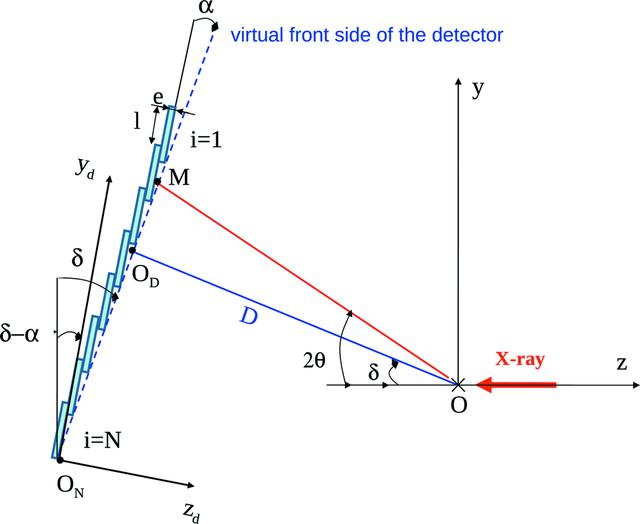

Schematic view of the XPAD3.1 detector in the detection geometry. The sample is placed at the origin O of the laboratory frame (x,y,z), corresponding to the vertex of the diffraction cone with $[2\theta]$ Bragg angle. D is the orthogonal distance between the sample and the virtual front side of the detector. O_D is the intersection of the line perpendicular to the virtual front side with this side (i.e. O_D corresponds to the direct beam for [delta]

= 0). O_N is at the bottom corner of the lowest module in the yz plane (x = x_d = 0). The detector frame (x_d,y_d,z_d) has its origin at O_N.
