Synchrotron X-ray diffraction experiments with a prototype hybrid pixel detector

Le Bourlot, C.; Landois, P.; Djaziri, S.; Renault, P.-O.; Le Bourhis, E.; Goudeau, P.; Pinault, M.; Mayne-L'Hermite, M.; Bacroix, B.; Faurie, D.; Castelnau, O.; Launois, P.; Rouzière, S.

doi:10.1107/S0021889811049107

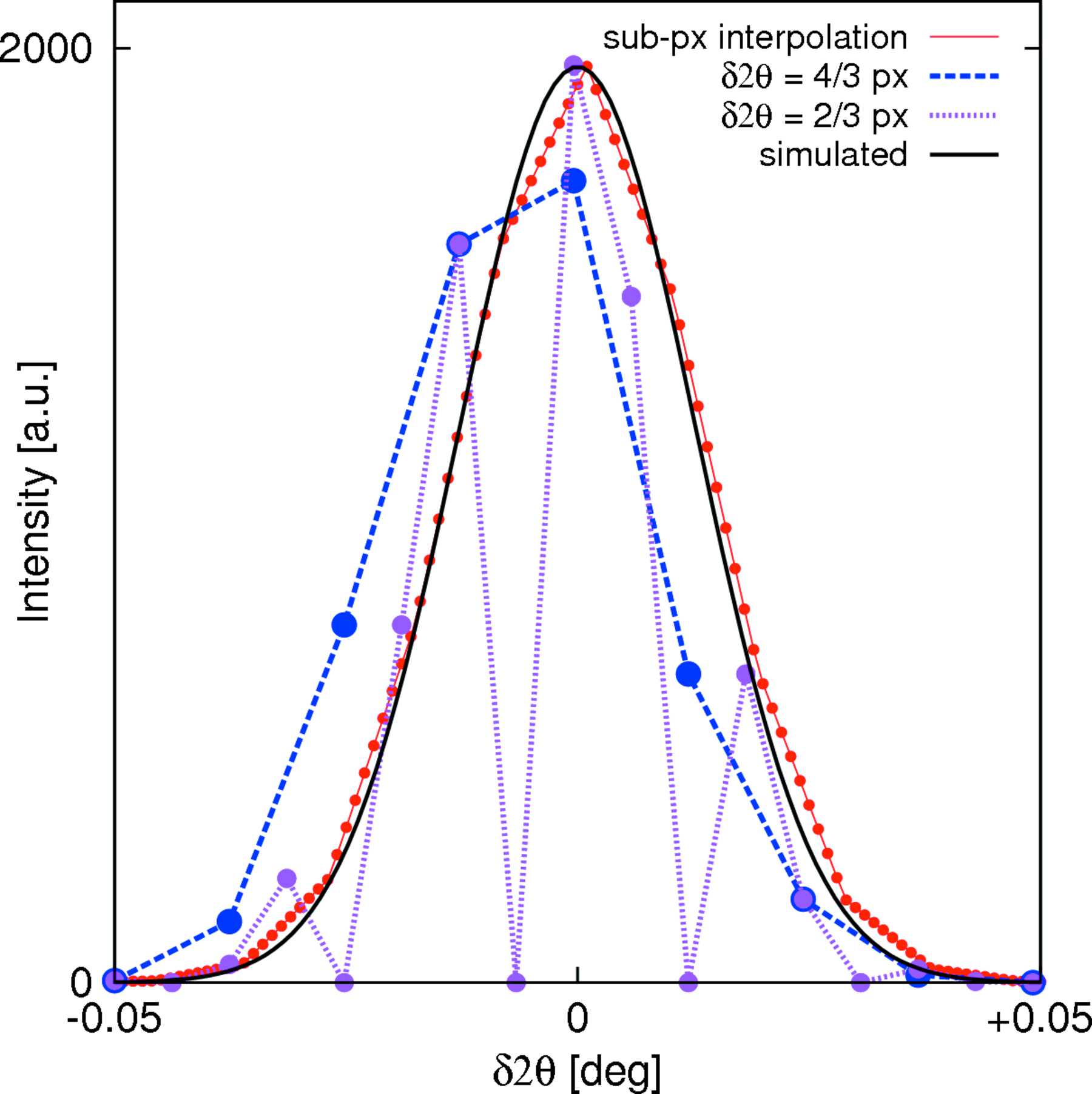

Figure 8
An example of Bragg peak intensity $[I(2\theta)]$ obtained from an integration of a theoretical image simulated by ray tracing. The expected result is a Gaussian peak having an FWHM of 3 pixels. The integration is performed with or without subpixel interpolation, for an azimuthal integration over 2° around the azimuth angle of 90°. When no subpixel interpolation was used, different values for the increment $[\delta 2\theta]$ were investigated as a function of the pixel aperture ( $[\delta 2\theta = {{2} / {3}}]$ pixels and $[\delta 2\theta = {{4} / {3}}]$ pixels). (Shown in colour in the electronic version of the journal.)
