Figure 9

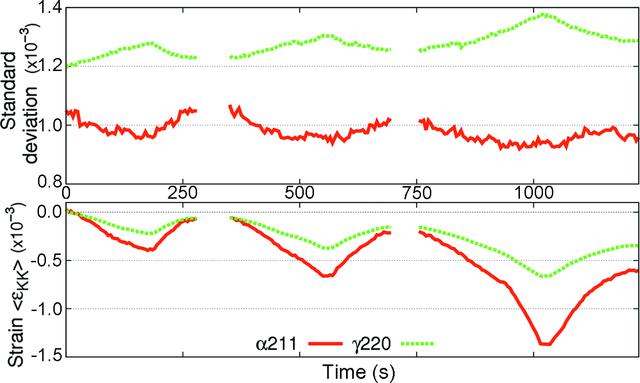

Bottom: elastic (lattice) strain corresponding to the shifts of the [\alpha\{ 211\}] and [\gamma\{ 220\}] peaks along the three loading-unloading cycles. Top: corresponding strain heterogeneities in the diffracting volume associated with peak broadening. The specimen response is indicated with respect to the time required for in situ loading. (Shown in colour in the electronic version of the journal.)  [article HTML]
