Figure 9

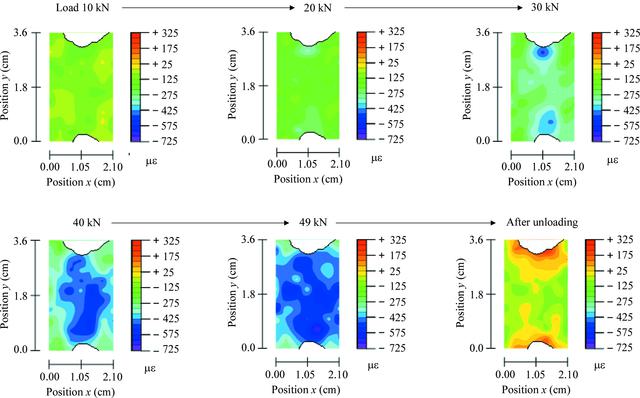

The 110 lattice strain mapping by Bragg-edge transmission. A change in the strain distribution was clearly observed with increasing load. ![[article HTML]](../../../../../graphics/viewarticleborder.gif)
|
