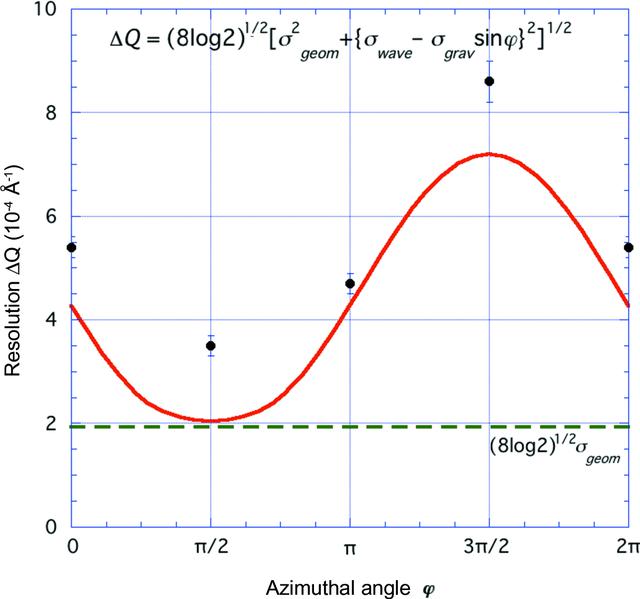

Figure 2
The variation of the FWHM of the diffraction peak for opal using [lambda] = 10 Å neutrons as a function of azimuthal angle [varphi]. The line is the calculation and the points are the measured data. Both are averaged over 20°. The statistical error bars correspond to one standard deviation.  [article HTML]
