Experimental studies of dispersive double reflections excited in cylindrically bent perfect-crystal slabs at a constant neutron wavelength

Mikula, P.; Vrána, M.; Šaroun, J.; Davydov, V.; Em, V.; Seong, B.-S.

doi:10.1107/S0021889811054124

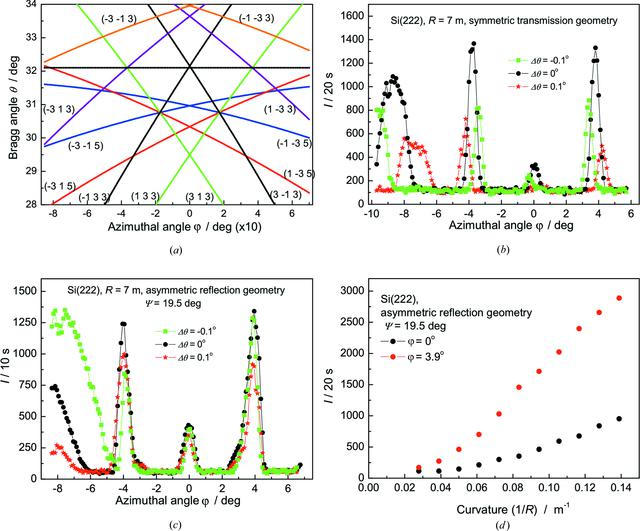

Figure 3
(a) Part of the azimuth-Bragg angle relationship for the 222 primary reflection of the diamond structure, (b) and (c) experimental scans for, respectively, symmetric and asymmetric diffraction geometries of Si slabs for different deviations [Delta]

from the mean Bragg angle, and (d) intensity dependence of the MBR effect on the curvature of the crystal. R is the bending radius of the crystal slab and [Psi]

is the degree of asymmetry. The mean neutron wavelength was about 0.166 nm.
