Figure 7

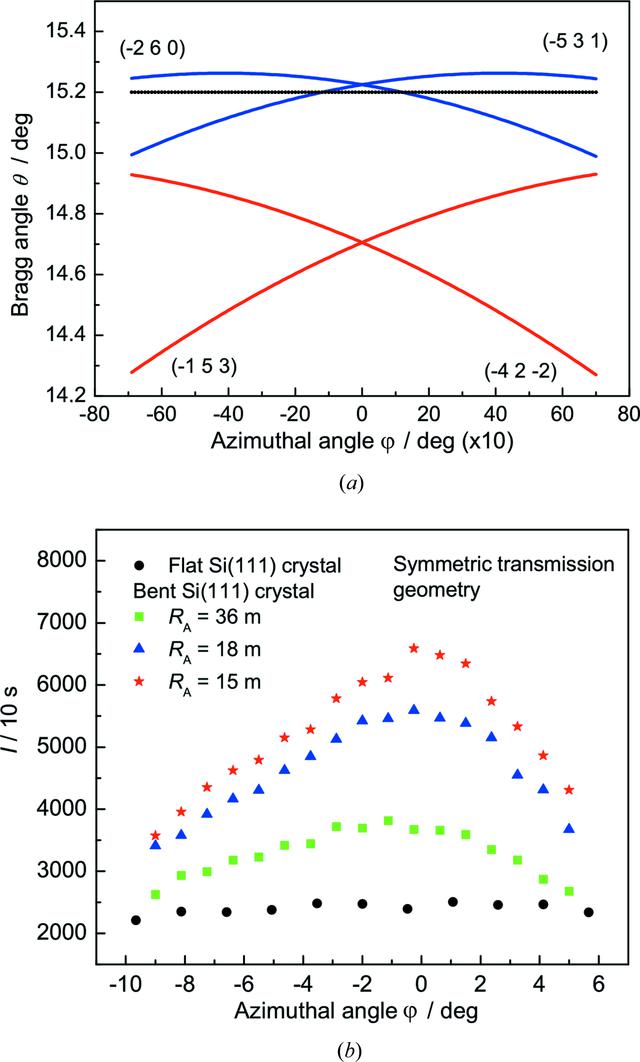

(a) Part of the azimuth-Bragg angle relationship for the allowed 111 primary reflection of the diamond structure and (b) experimental scans for the Si slab set at the mean Bragg angle for different bending radii.  [article HTML]
