Application of the ellipsoid modeling of the average shape of nanosized crystallites in powder diffraction

Katerinopoulou, A.; Balic-Zunic, T.; Lundegaard, L.F.

doi:10.1107/S0021889811055075

Figure 3

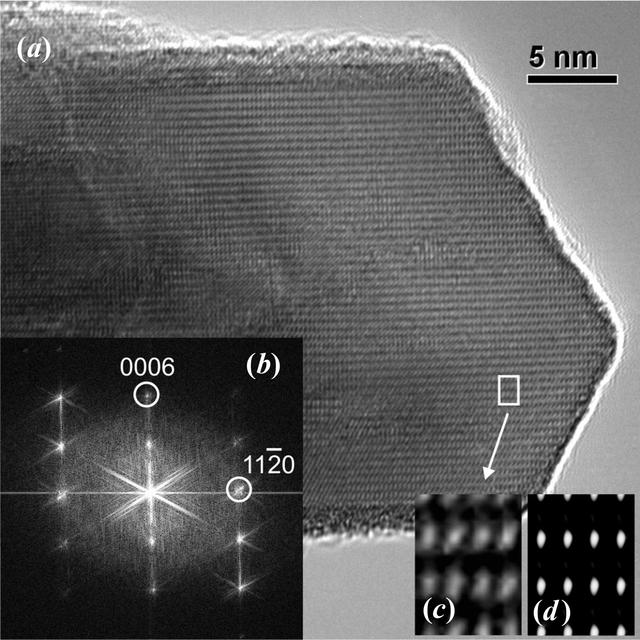

(a) HRTEM image of a hematite crystal viewed perpendicular to the c axis. (b) Fast Fourier transform of (a). The marked spots have the observed d spacings 2.29 and 2.53 Å, corresponding to the 0006 and 1 $[\overline 1]$ 20 reflections of hematite, respectively. (c) Close up of the area marked with the white rectangle in (a). (d) Simulated HRTEM image of hematite.
