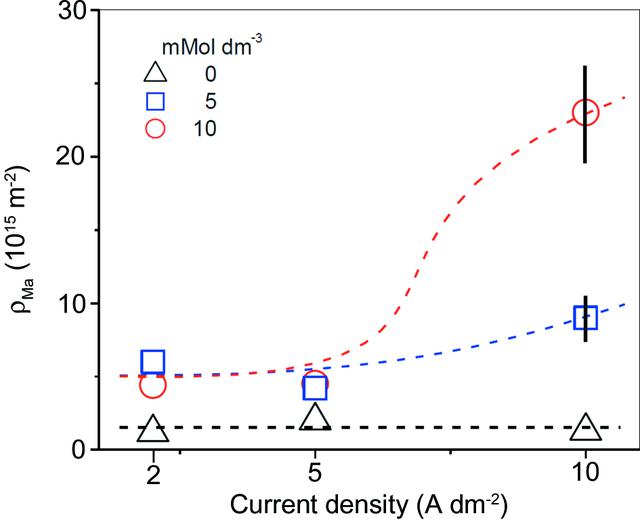

Figure 4
Correlation between one of the deposition conditions, namely direct current density, and the measured dislocation densities for all of the investigated samples with different major texture components. Classification is made by the different concentration of the additive solution. Significant changes as a function of the direct current density are observed in the dislocation densities for samples derived using 10 mMol dm-3 additive.  [article HTML]
