Figure 2

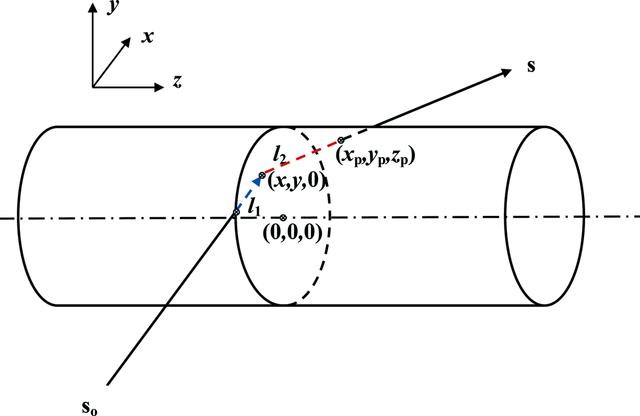

General diffraction scheme for a cylindrical sample. s0 and s are the incident and diffracted beam directions, and l1 and l2 the corresponding path lengths through the sample before and after the diffraction at the point (x, y, 0). The exit point is at (xp, yp, zp).  [article HTML]
