![[Figure 3]](rg5004fig3mag.jpg)
|
|
Figure 3

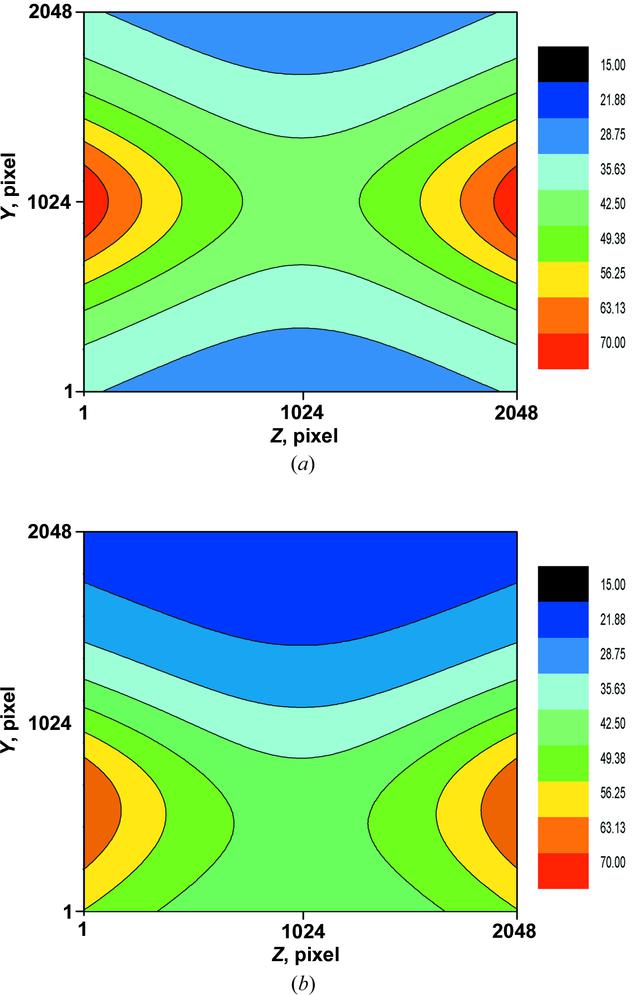

Contour map of the absorption factor distribution over a two-dimensional area-detector plane for ![[mu]](/logos/entities/mu_rmgif.gif) R = 2.5. (a) Perpendicular geometry (![[alpha]](/logos/entities/alpha_rmgif.gif) = 0°), (b) inclined geometry ( = 30°). ![[article HTML]](../../../../../graphics/viewarticleborder.gif)
|
![[Figure 3]](rg5004fig3.jpg)
© International Union of Crystallography 2012
|
|
|
Figure 3
Contour map of the absorption factor distribution over a two-dimensional area-detector plane for R = 2.5. (a) Perpendicular geometry ( = 0°), (b) inclined geometry ( = 30°).
|
