Figure 3

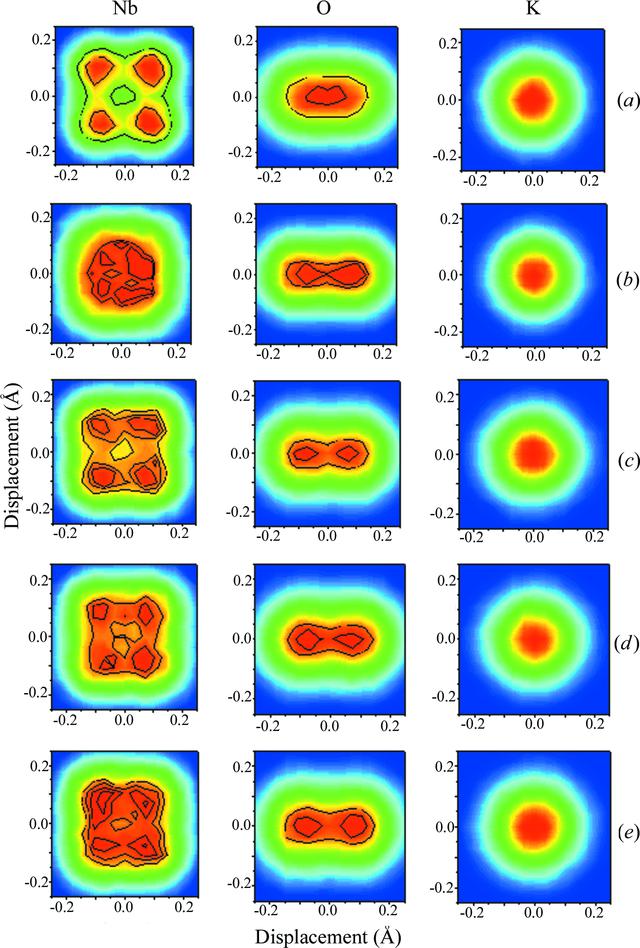

Probability density distributions for Nb, O and K projected onto the {100} plane for the simulated structure (a) and for models obtained by fitting G(r) (b), G(r) + Bragg (c), G(r) + Bragg + EXAFS (d) and G(r) + Bragg + EXAFS + electron diffuse scattering (e). The images represent the sums of projections onto the three inequivalent {100} planes.
