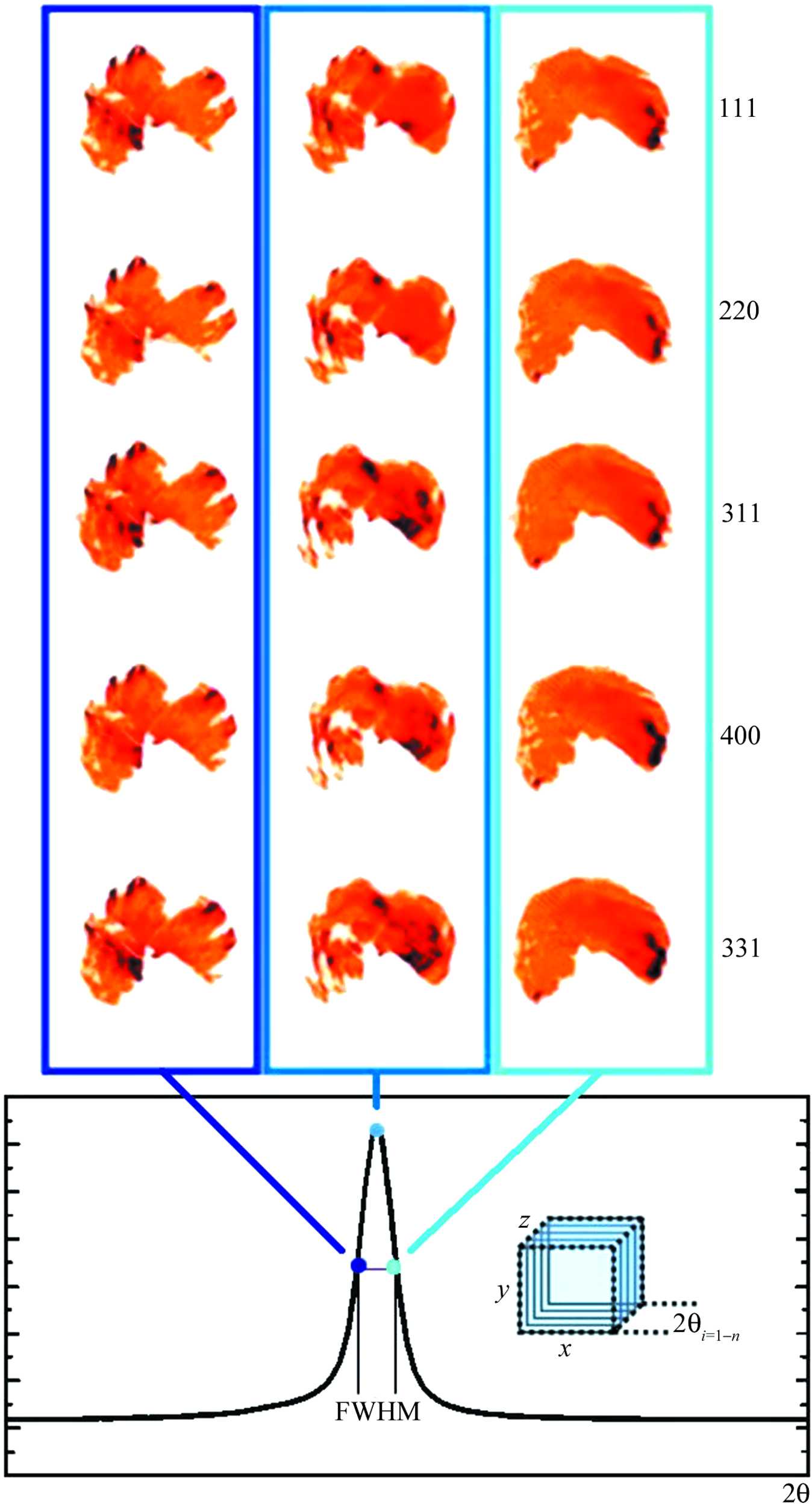

Figure 14
Two-dimensional reconstructions obtained on strained polycrystalline diamond at three different 2[theta] positions for five different cubic diamond reflections (111, 220, 311, 220 and 331): low FWHM (dark blue), center FWHM (mid blue), high FWHM (light blue). The cubic lattice parameters vary between 3.56 and 3.59 Å, indicating that the sample is composed of different domains having different lattice strain (extension from Álvarez-Murga et al., 2012BB3).  [article HTML]
