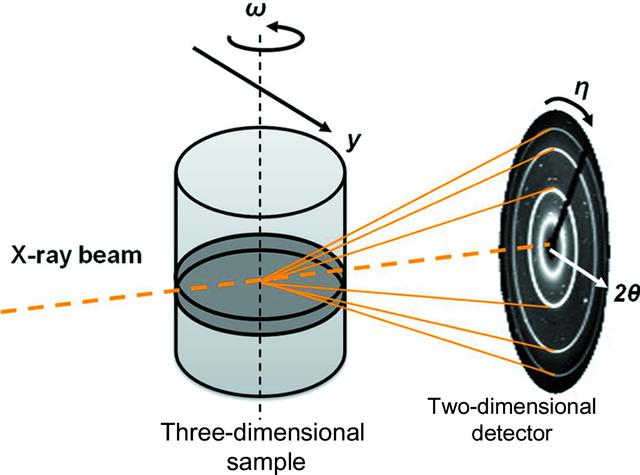

Figure 3
Sample rotation (ω) and scanning (y) setup for a DSCT experiment. A monochromatic pencil X-ray beam illuminates the sample at different positions along the scanning direction (y) and a series of high-resolution two-dimensional diffraction patterns (2θ, η) averaged along the beam path are recorded at several projection angles (ω).
