Figure 2

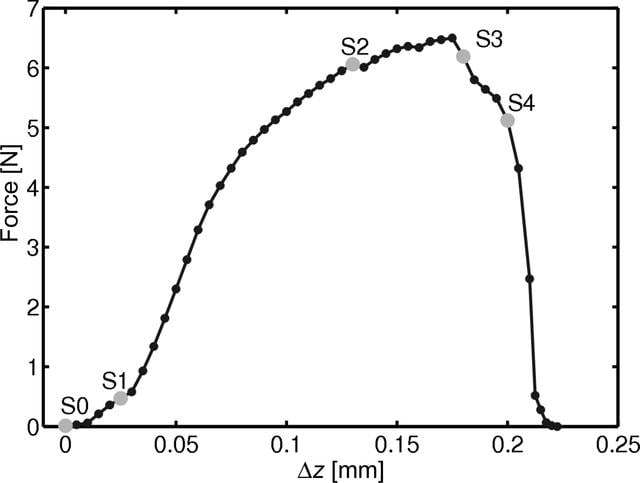

Load-cell readings as a function of the displacement of the tension-applying translation stage. Extension is plotted instead of strain because the gauge cross section, and thus strain, are variable. Light-gray dots indicate states where HEDM imaging was performed, but only data from the first three such points are discussed here.  [article HTML]
