Formation of (Fe,Cr) carbides and dislocation structures in low-chromium steel studied in situ using synchrotron radiation

Dere, E.G.; Sharma, H.; Huizenga, R.M.; Portale, G.; Bras, W.; Bliznuk, V.; Sietsma, J.; Offerman, S.E.

doi:10.1107/S0021889812043531

Figure 1

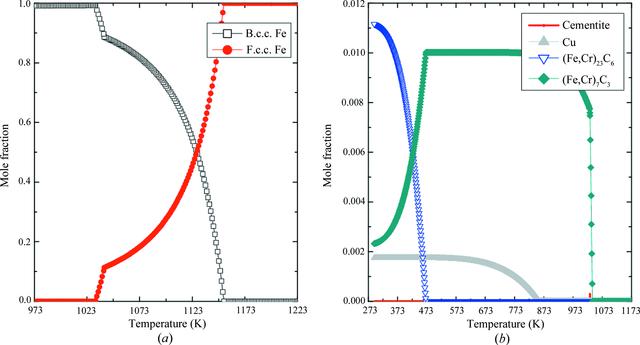

The mole fractions of the equilibrium phases as a function of temperature for the alloy, as calculated with Thermo-Calc, showing (a) b.c.c. Fe and f.c.c. Fe, and (b) cementite, (Fe,Cr)₂₃C₆, (Fe,Cr)₇C₃ and copper.
