Figure 11

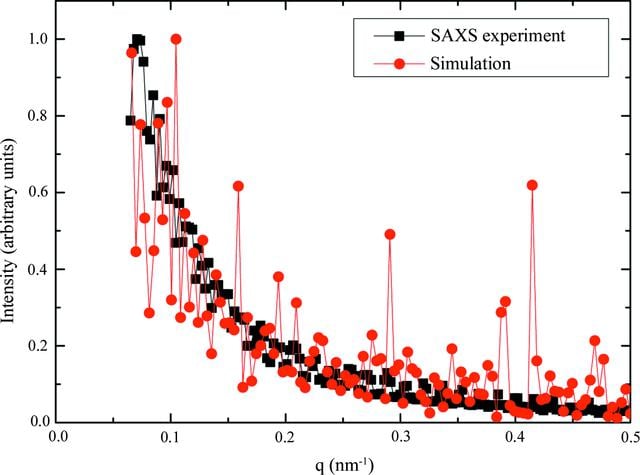

The scattering intensity with respect to the scattering vector magnitude q from a slice of a streak of summed two-dimensional SAXS patterns from the rotational SAXS experiment, and from a slice of the two-dimensional SAXS pattern from the simulation. The simulation is carried out for all dislocation walls present in the range D = 1-100 nm with a step size of 1 nm, and N = 100-2000 with a step size of 100, which corresponds to 2000 dislocation walls.  [article HTML]
