Formation of (Fe,Cr) carbides and dislocation structures in low-chromium steel studied in situ using synchrotron radiation

Dere, E.G.; Sharma, H.; Huizenga, R.M.; Portale, G.; Bras, W.; Bliznuk, V.; Sietsma, J.; Offerman, S.E.

doi:10.1107/S0021889812043531

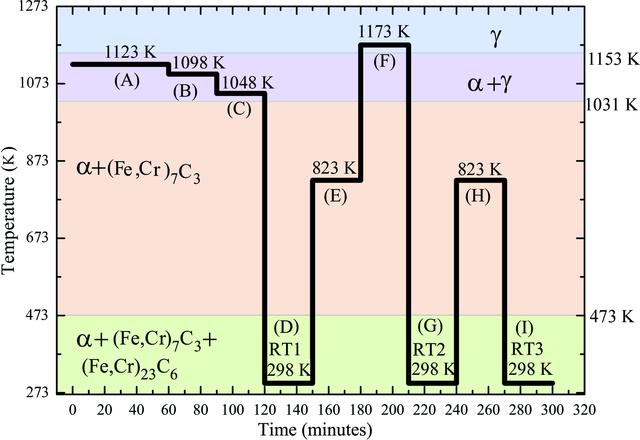

Figure 2
The heat treatment of the specimen during the in situ SAXS experiments. RT = room temperature. The temperature ranges at which the ferrite ( [alpha]

) and austenite ( [gamma]

) phases and the (Fe,Cr) carbides exist are indicated.
