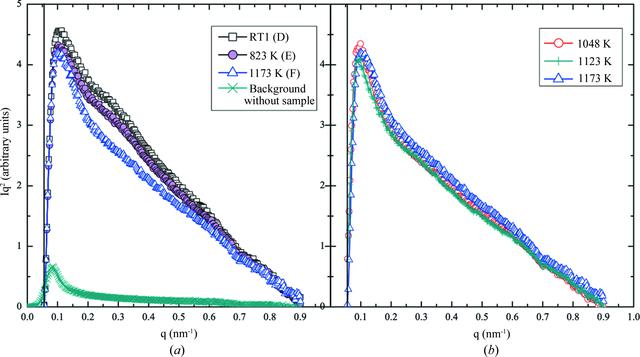

Figure 6
The intensity of the isotropically scattered X-rays as a function of q after radial integration of the two-dimensional SAXS pattern, from which the streaks have been masked. The Kratky plots are shown at different temperatures: (a) RT1, 823 K and 1173 K and the background intensity recorded at room temperature without a specimen, and (b) 1173, 1123 and 1048 K. The black vertical line in each figure shows the position of the beamstop, which is at qbeamstop = 0.055 nm−1.
