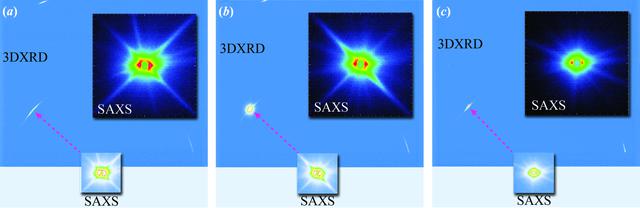

Figure 9
SAXS and 3DXRD patterns recorded during rotation around the zlab axis: (a) at the angle at which the streak and the spot start to appear, (b) at the angle at which the intensities of the streak and the spot are at their maximum, and (c) at the angle at which the streak and the spot start to disappear. The streaks in the SAXS patterns and the spot in the 3DXRD patterns are combined into one figure in which the SAXS image is positioned at the location of the direct beam of the 3DXRD image and the streaks are observed over a rotation angle of 15.8°. Dashed arrows indicate the correspondence between the directions of the streaks in the SAXS patterns and the positions of the diffraction spots in the 3DXRD patterns.
