Figure 4

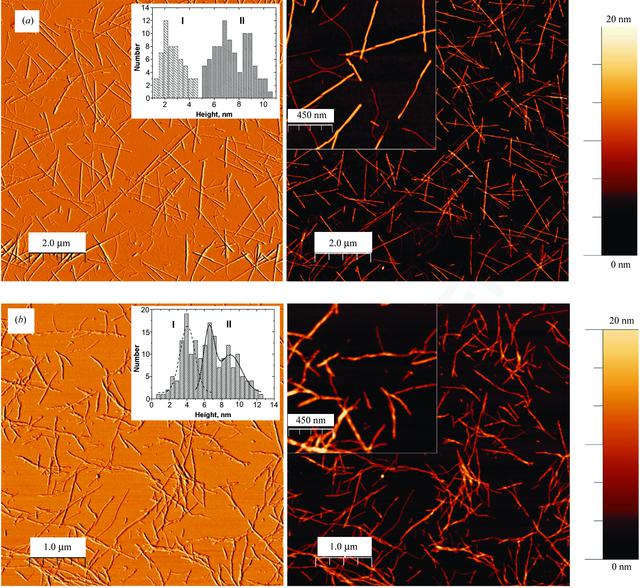

AFM phase (left) and height (right) images of HEWL amyloid fibrils adsorbed on a mica surface from H2O-based (a) and D2O-based (b) solutions. In the insets (left) the height distributions from the cross-section analysis are given.  [article HTML]
