Figure 5

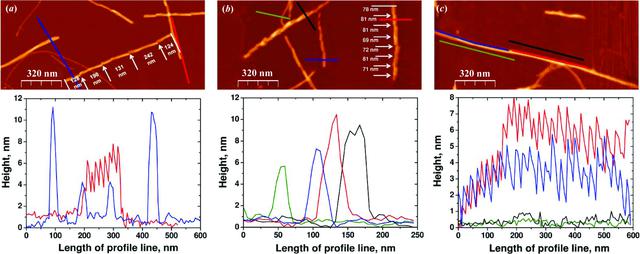

AFM height images and their representative profile cross sections for amyloid fibrils deposited from H2O-based (a) and D2O-based (b), (c) solutions on a mica substrate.  [article HTML]
