view article

Figure 1

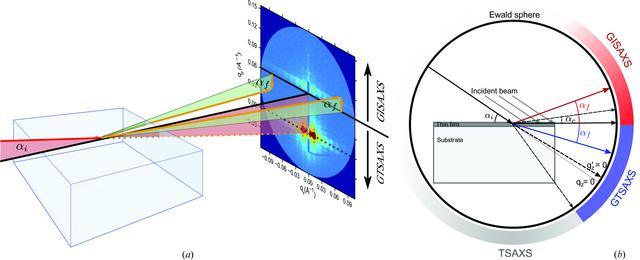

(a) A three-dimensional illustration of GTSAXS and GISAXS geometries. The incident beam (red arrow) impinges on the sample at a grazing angle of [\alpha_{\rm i}] and the scattered beam is collected by an area detector. The direct incoming beam (orange dotted line) goes through the origin of the qrqz reciprocal space. In the scattering image, the solid line [[q_z = (2\pi/\lambda) \sin \alpha_{\rm i}]] marks the surface horizon, which divides the whole scattering image into the GTSAXS and GISAXS regimes. The dotted line corresponds to the direct beam (qz = 0). (b) A two-dimensional Ewald sphere illustration of the GTSAXS, GISAXS and TSAXS regimes. The rather large grazing incident angle shown is for illustrative purpose. In GISAXS measurements [\alpha_{\rm i}] is close to grazing incidence and in TSAXS the range is typically [20 \leq \alpha_{\rm i} \leq 90]°.

Journal logoJOURNAL OF
ISSN: 1600-5767
Follow J. Appl. Cryst.
Sign up for e-alerts
Follow J. Appl. Cryst. on Twitter
Follow us on facebook
Sign up for RSS feeds
