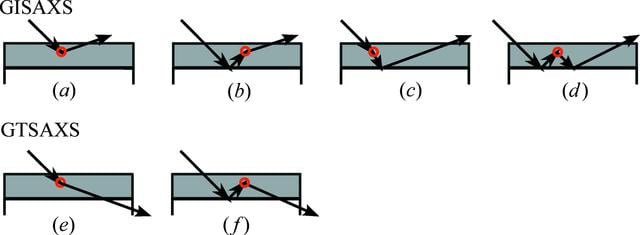

Figure 4
(a)--(d) In the two-slab DWBA, four terms contribute to the GISAXS scattering amplitude, as described in the text. (e), (f) In the two-slab DWBA only the first two terms contribute to the GTSAXS scattering amplitude. At large incident angle the scattering is well described by term (e) alone (Born approximation).  [article HTML]
