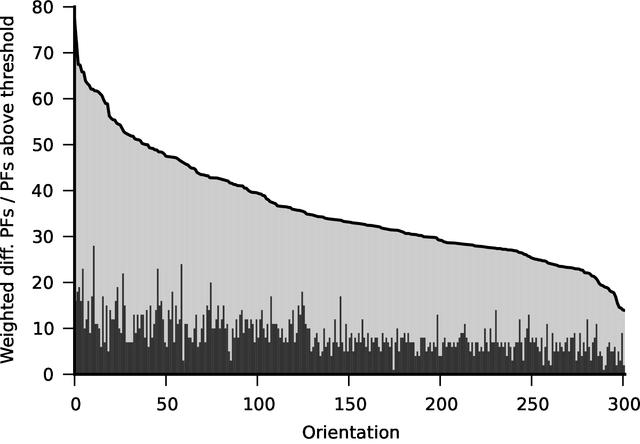

Figure 8
Histogram showing the result of the first cycle of the algorithm to choose the orientations for intensity extraction (the left-most orientation is selected). Reflections up to 60° 2[theta] were considered. The contribution from non-overlapping reflections is plotted in black and that from overlapping reflections in gray. Suitable orientations in the (difference) PF for this step were defined as those with [P \ge 0.66 P_{{\rm max}}] and [P \ge 2.00].  [article HTML]
