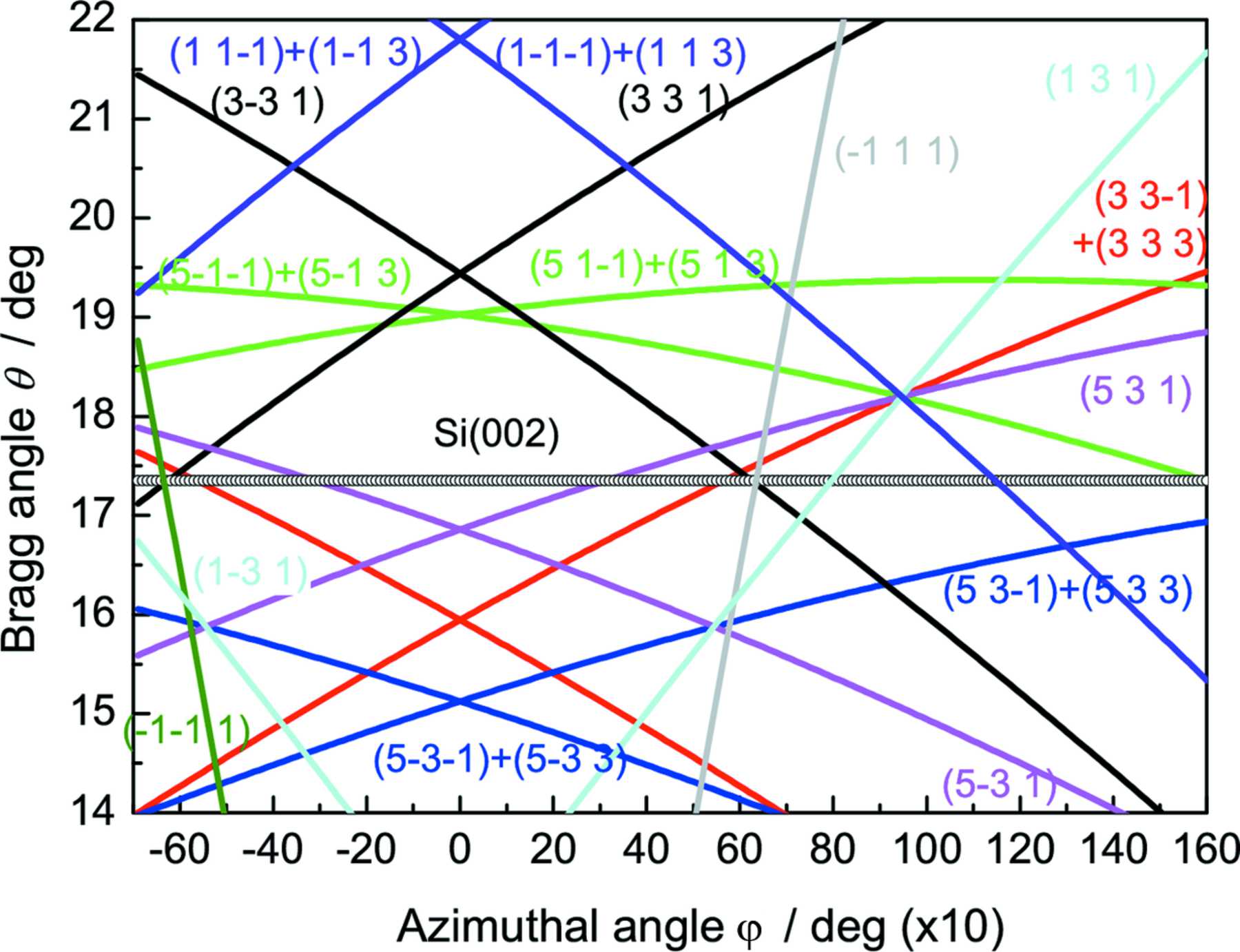

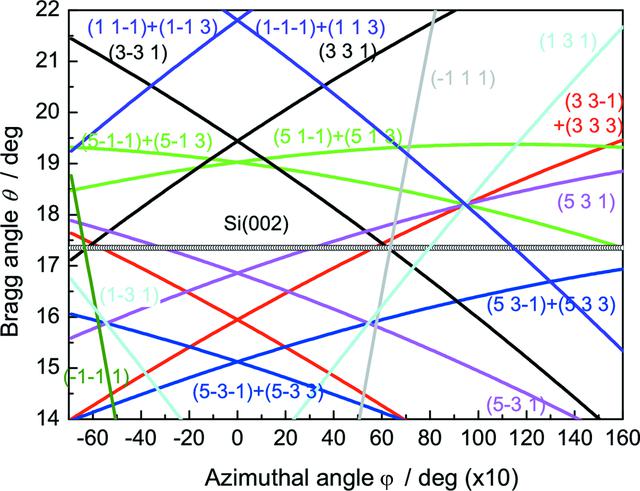

Figure 4
Part of the azimuth-Bragg angle relationship for the 002 primary reflection of the diamond structure in the vicinity of the Bragg angle of 17.5°. Indices are related only to secondary reflections. The line of open circles corresponds to the line of azimuthal rotation at the constant mean Bragg angle of 17.35°.  [article HTML]
