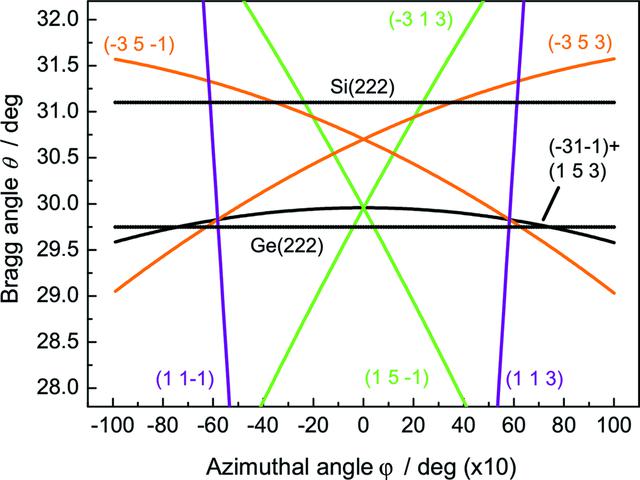

Figure 5
Part of the azimuth-Bragg angle relationship for the 222 primary reflection of the diamond structure in the vicinity of the Bragg angle of 30°. Indices are related only to secondary reflections. The solid black straight lines correspond to the lines of azimuthal rotation at the constant Bragg angles of 29.75 and 31.1°.  [article HTML]
