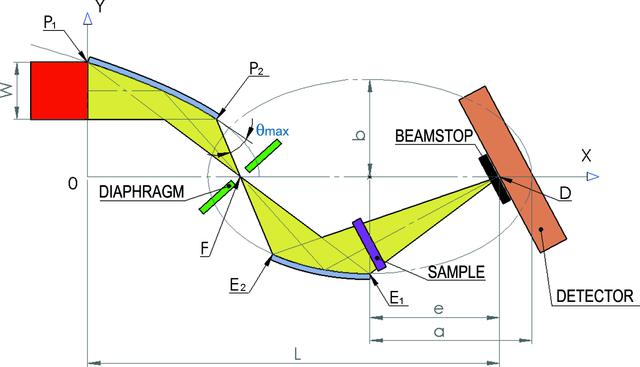

Figure 1
Principle of the focusing device with a combination of parabolic and elliptical supermirrors (drawing not to scale). P1, P2 and E1, E2 correspond to the extremities of the parabola and ellipse, respectively. F is the parabola's focal point, D is the detector location, and a and b are the ellipse half-axes.  [article HTML]
