Cimetidine, C10H16N6S, form C: crystal structure and modelling of polytypes using the superspace approach

Arakcheeva, A.; Pattison, P.; Bauer-Brandl, A.; Birkedal, H.; Chapuis, G.

doi:10.1107/S0021889812048133

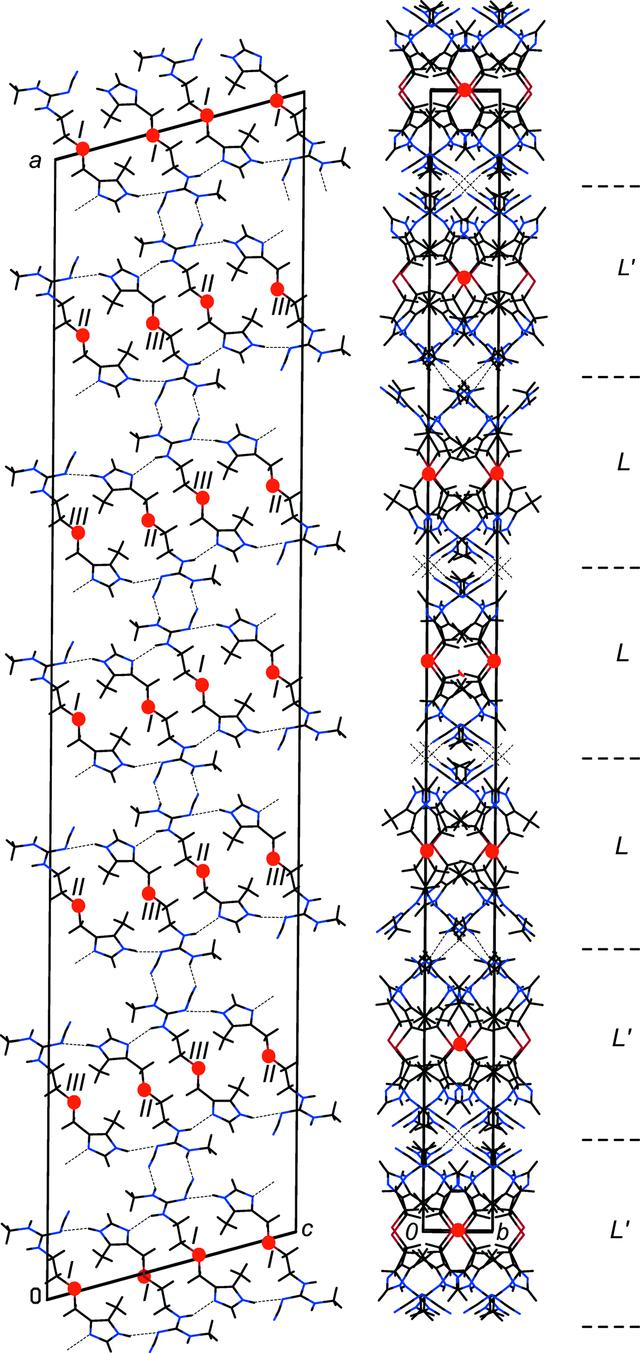

Figure 5
Packing of molecules in cimetidine form C polytype 6M. The ac (left) and ab (right) structure projections are shown. Red circles mark the centres of molecules associated with the positions of S1 atoms. L and L' are defined by y [asymptotically equal to]

0 and y

0.5, respectively, for the centres of the molecules. I, II and III denote the corresponding molecules.
