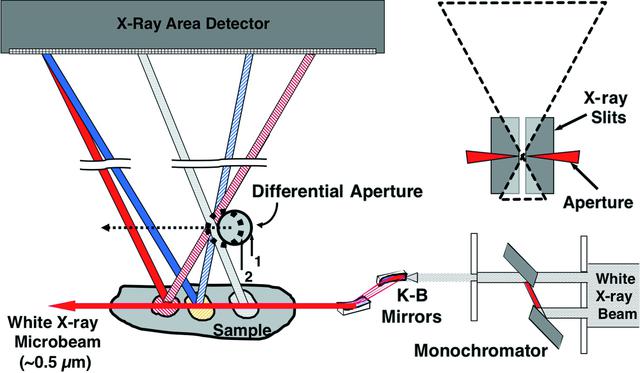

Figure 2
Schematic drawing of a 50 µm differential-aperture depth-profiler wire occluding Bragg-reflected X-rays from a wide range of angles. The angular range of the reflections from various positions along the beam would not pass through a narrow slit, which acts like a collimator rather than an aperture.  [article HTML]
