Figure 5

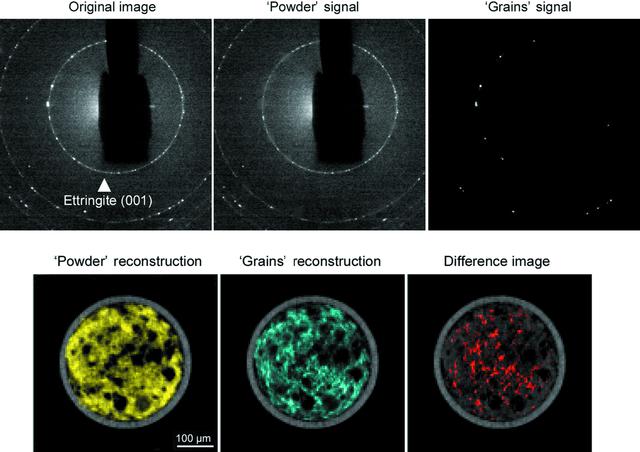

Distribution of ettringite `crystallinity'. The top row displays details of the low-2θ region containing the 001 diffraction ring of ettringite and the separation of the powder-like signal (fine ettringite) from the large-grains signal (coarse ettringite). In the lower row the spatial distribution maps of the finer and coarser ettringite are plotted. The difference image highlights where the largest ettringite grains are located.
