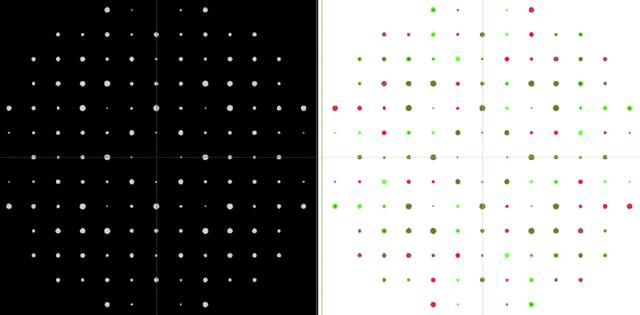

Figure 1
The diffraction pattern with apparent Laue symmetry 4/mmm on the left is composed of two individual diffraction patterns. These are shown on the right, with the individual components in green and red, each showing only a Laue symmetry of 4/m (for which vertical mirror planes are not present in the individual diffraction patterns).
