Figure 2

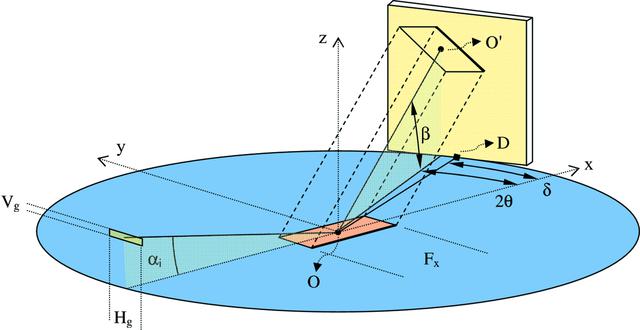

Geometry of the footprint projection on a two-dimensional detector in a GID experiment. Point O is the footprint centre and the origin of the coordinate system. Point O′ in the two-dimensional detector plane is the diffraction image of the point O. The scattering vector is characterized by in-plane scattering angle 2θ and grazing-exit angle β.
