An X-ray diffractometer coupled with diffuse reflectance infrared Fourier transform spectroscopy and gas chromatography for in situ and in operando characterization: an innovative analytical laboratory instrument

Braconnier, L.; Clémençon, I.; Legens, C.; Moizan, V.; Diehl, F.; Pillière, H.; Echegut, P.; De Sousa Meneses, D.; Schuurman, Y.

doi:10.1107/S0021889812042781

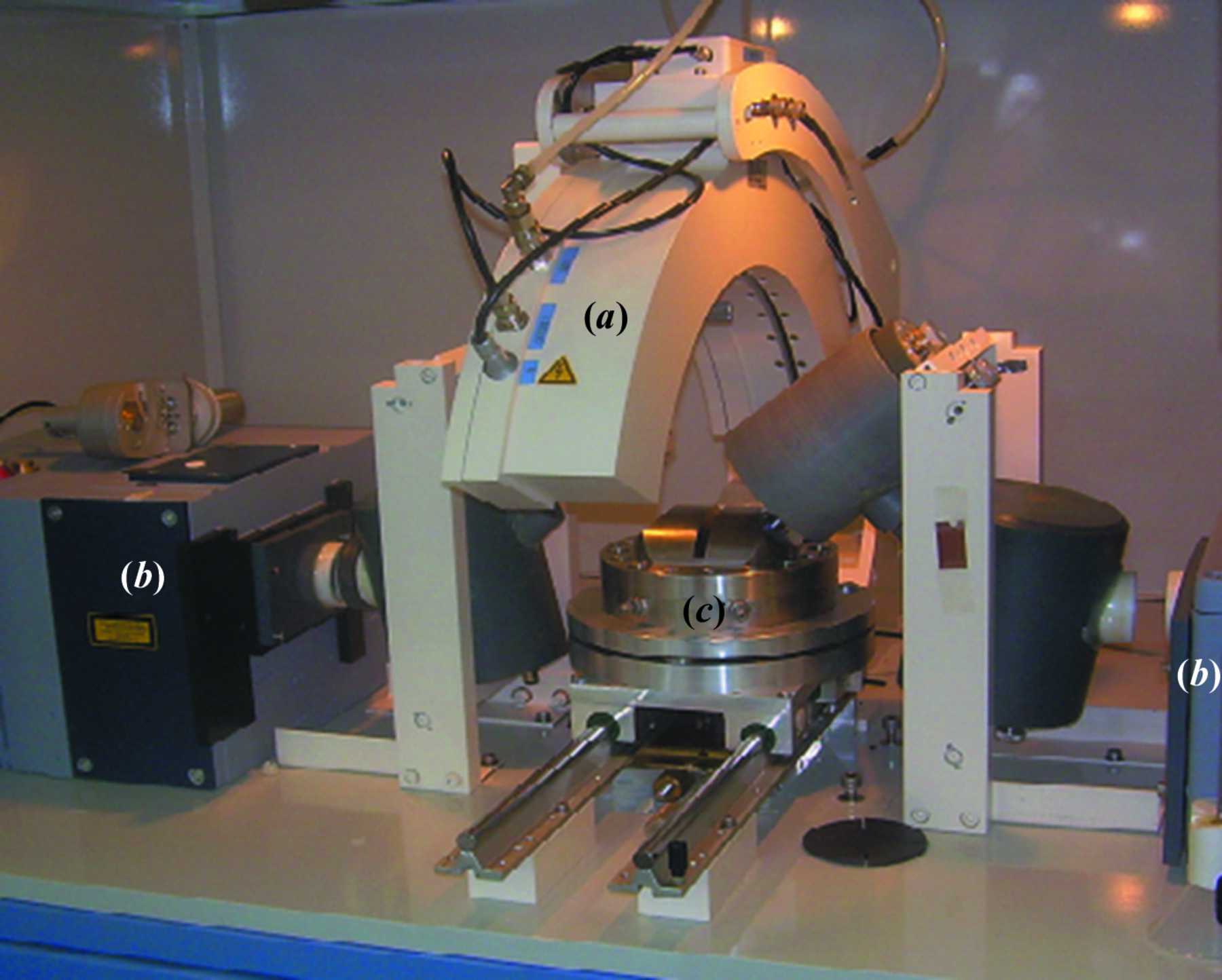

Figure 1
A photograph of the multitechnique device. (a) The XRD detector, (b) the IR spectrometer and (c) the reaction cell.
