An X-ray diffractometer coupled with diffuse reflectance infrared Fourier transform spectroscopy and gas chromatography for in situ and in operando characterization: an innovative analytical laboratory instrument

Braconnier, L.; Clémençon, I.; Legens, C.; Moizan, V.; Diehl, F.; Pillière, H.; Echegut, P.; De Sousa Meneses, D.; Schuurman, Y.

doi:10.1107/S0021889812042781

Figure 9

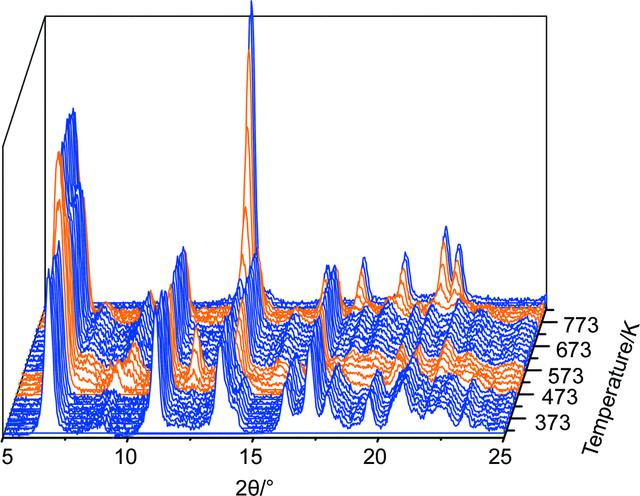

X-ray diffraction patterns recorded during the thermal decomposition of calcium oxalate (50 mg, 5 K min^-1); blue traces represent stable crystallographic phases and orange diffraction traces indicate intermediate crystallographic structures.
