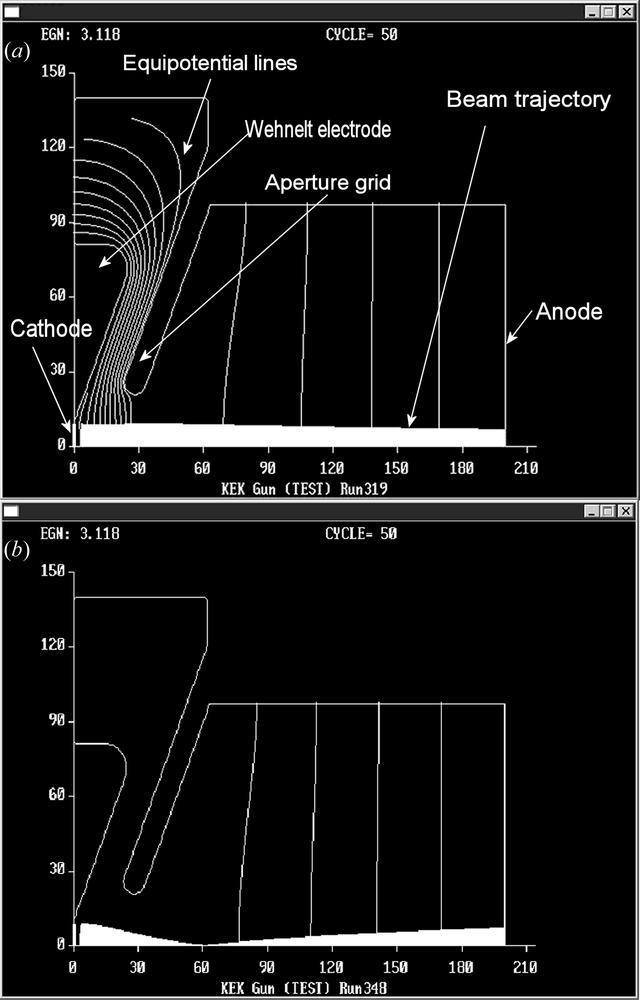

Figure 6 Beam trajectories calculated using EGUN simulations. (a) The beam is extracted almost parallel, with a grid voltage of 3 kV. (b) The beam is spread out after the waist of the beam, with a grid voltage of 1 V.
