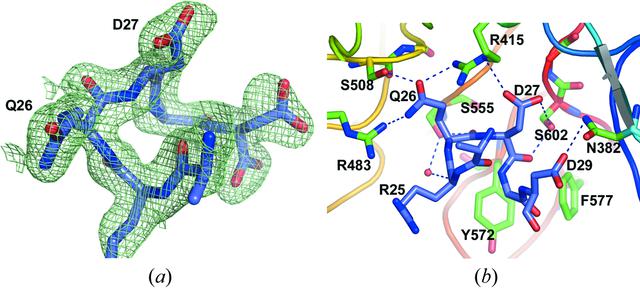

Figure 2 Close-up view of the peptide binding region. (a) Part of the refined DLG peptide showing Gln26 and Asp27. The final electron density 2mFo - DFc map is contoured at 1.0. (b) The interacting residues of the complex are shown by sticks, hydrogen bonds by dashed lines, and a water molecule by a ball.
