Figure 8

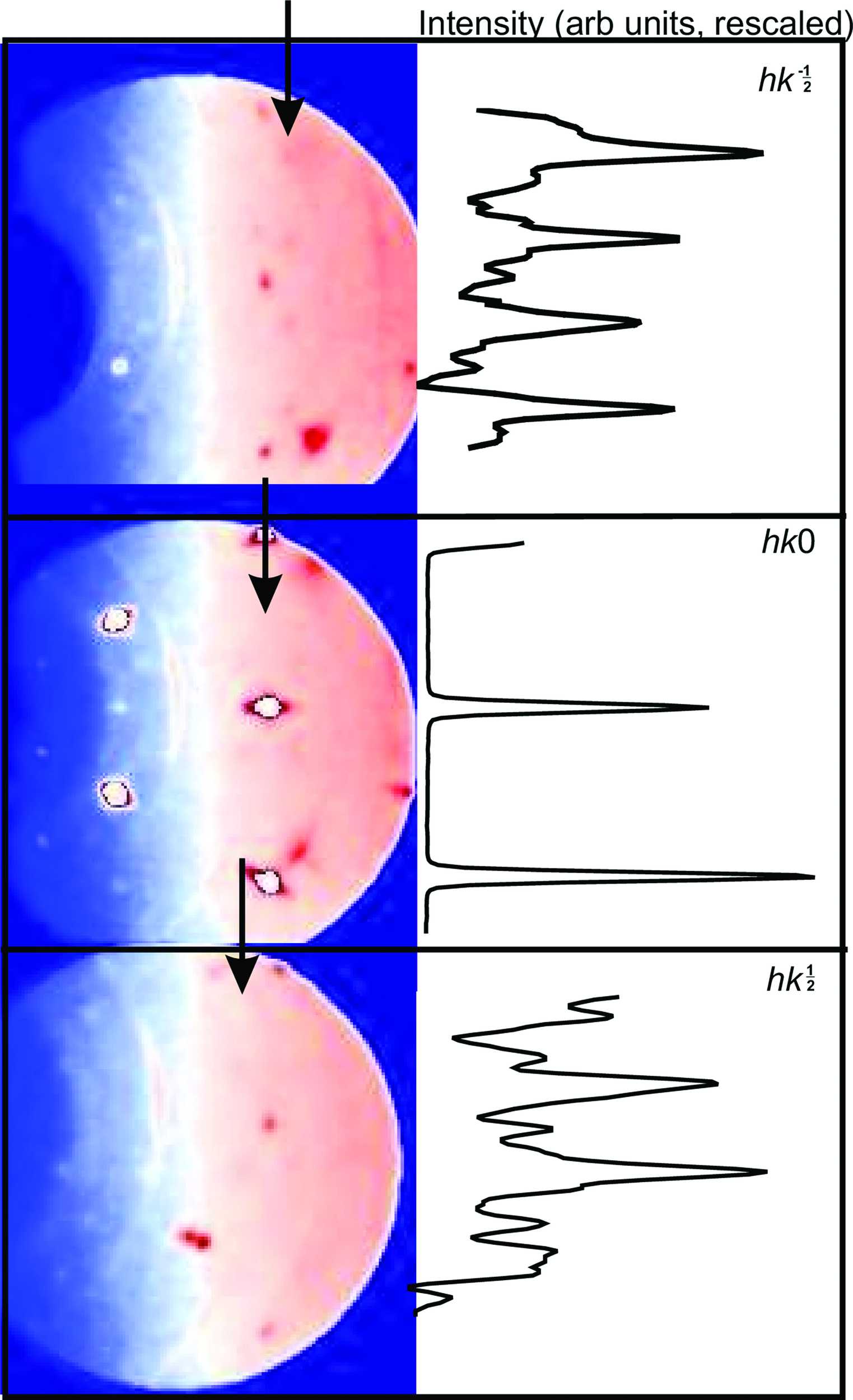

Reciprocal lattice sections hk, hk0 and hk around the 300 Bragg reflection reconstructed from CCD data images collected from a pure lead phosphate single crystal held at 2.0 GPa in a diamond–anvil cell. The layers hk and hk show clear evidence of diffuse reflections at the half-integer positions along the arrowed directions, as shown by the intensity profiles on the right. Note that in addition, the hk and hk layers also exhibit `spill-over' of the Bragg reflections from the hk0 layer. These sections can be compared with the much stronger diffuse scattering displayed in Fig. 7. |
