Figure 4

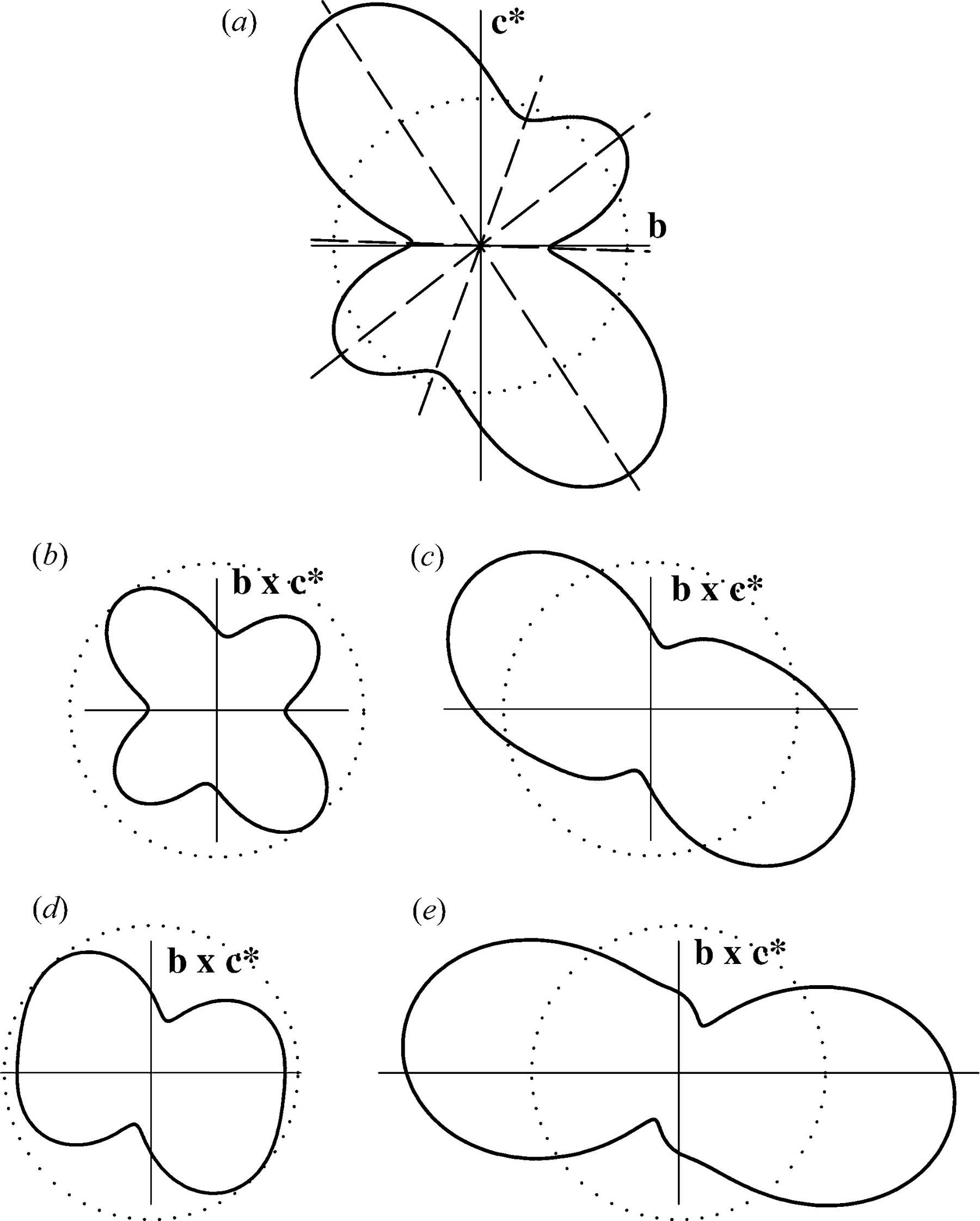

Anisotropic strain for different directions of the lattice of the αLS form: (a) in the bc* plane, (b)–(e) correspond to planes formed by the bc* direction and the direction of an extreme value of the strain in the previous plane. φ is the angle between this direction and b: (b) φ = −2°, (c) φ = 38°, (d) φ = 70°, (e) φ = 123°. The dotted circles represent the average value of the strain: 15.7 × 10−4. |
