Figure 3

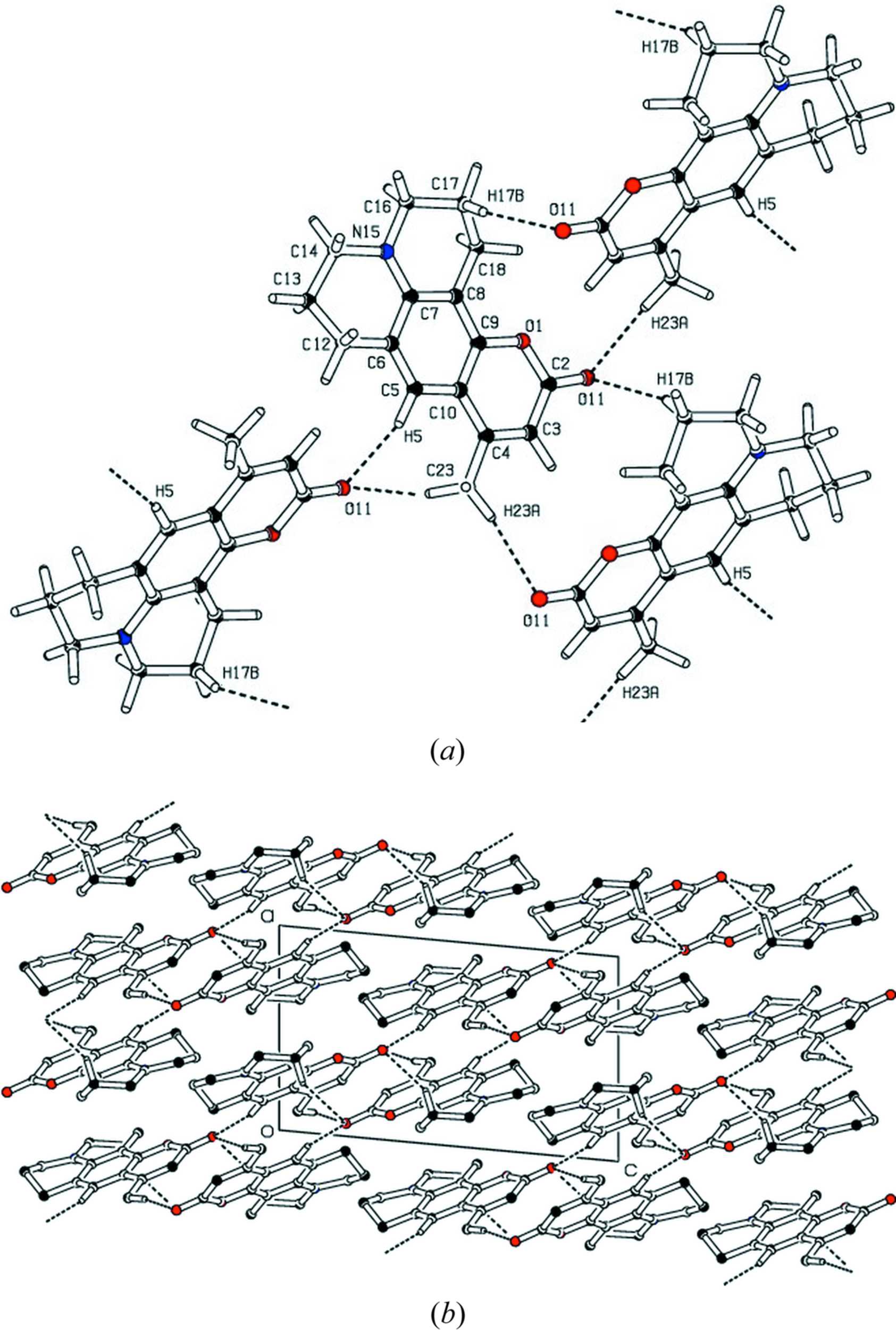

(a) View of the crystal packing part of C-102 showing the hydrogen bonds (dashed lines) between one molecule and its neighbours. (b) Crystal packing viewed down the b axis, showing molecular chains. H atoms not involved in hydrogen bonds have been omitted for clarity. The views were made using PLATON (Spek, 2003). |
