Figure 2

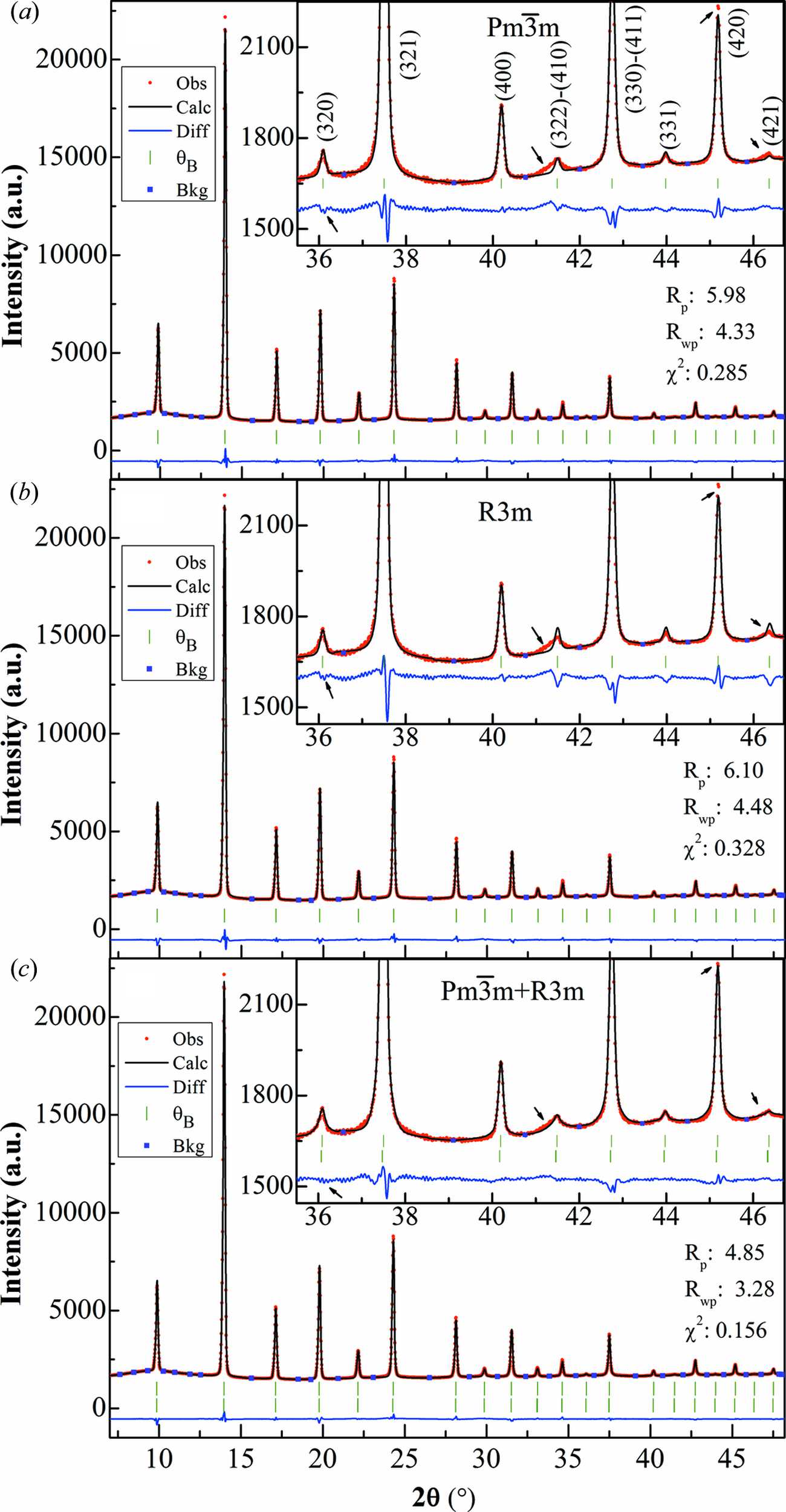

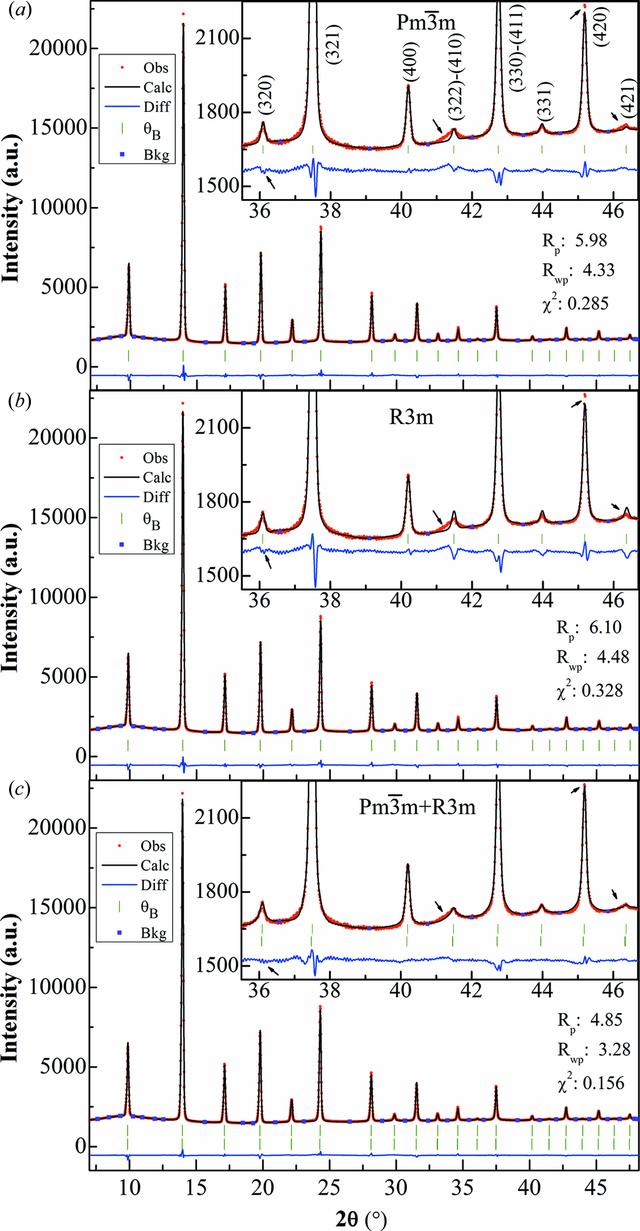

Rietveld refinement fitting of PMN XRD data with (a) the [Pm\bar 3m] model, (b) the R3m model and (c) the [Pm\bar 3m] and R3m model. Insets show the fitting of peaks in the q range ∼ 5–7 Å−1. Here red dots represent the synchrotron XRD data; black and blue lines represent the fitted curve and the difference curve, respectively, and green vertical ticks correspond to the Bragg positions. For the two-phase model (i.e. `c') the upper and lower green vertical ticks correspond to the Bragg positions of the [Pm\bar 3m] and R3m phases, respectively.
