Figure 4

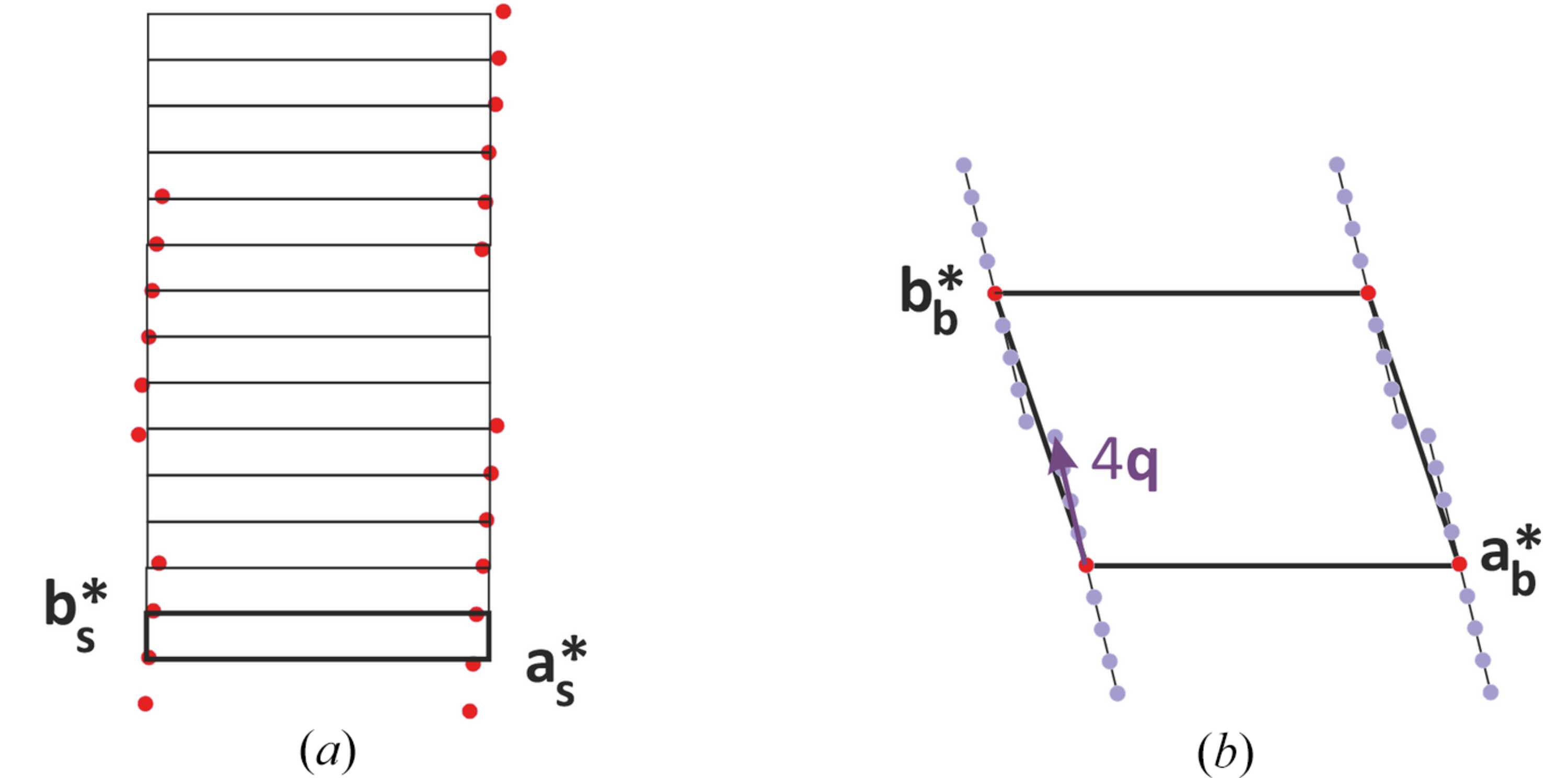

Scaled diffraction diagram of the C12H26N2O3 compound and its interpretation using the unit cells (a) (as*, bs*, cs*) and (b) (ab*, bb*, cb*). In (a) the reflections are not all accurately accounted for by the unit cell. In contrast, in (b), the satellite reflections are properly indexed using the modulation vector q = 0.008a* + 0.117b* + 0.579c*. Due to the significant 0.579cb* component of the modulation vector, these reflections lie outside the plane of the sketch. For clarity, they have been projected onto the (hbkb0)* plane. |
