Mapping structure–property relationships in a 6-oxo-verdazyl radical by variable pressure crystallography and density functional theory

Brookes, J.R.; Kumar, V.J.; Jones, I.M.; Summers, A.M.; Bird, S.A.; Low, P.J.; Moggach, S.A.; Spagnoli, D.

doi:10.1107/S2052520626006220

Acta Crystallographica Section B
Acta Crystallographica
Section B STRUCTURAL SCIENCE, CRYSTAL ENGINEERING AND MATERIALS

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

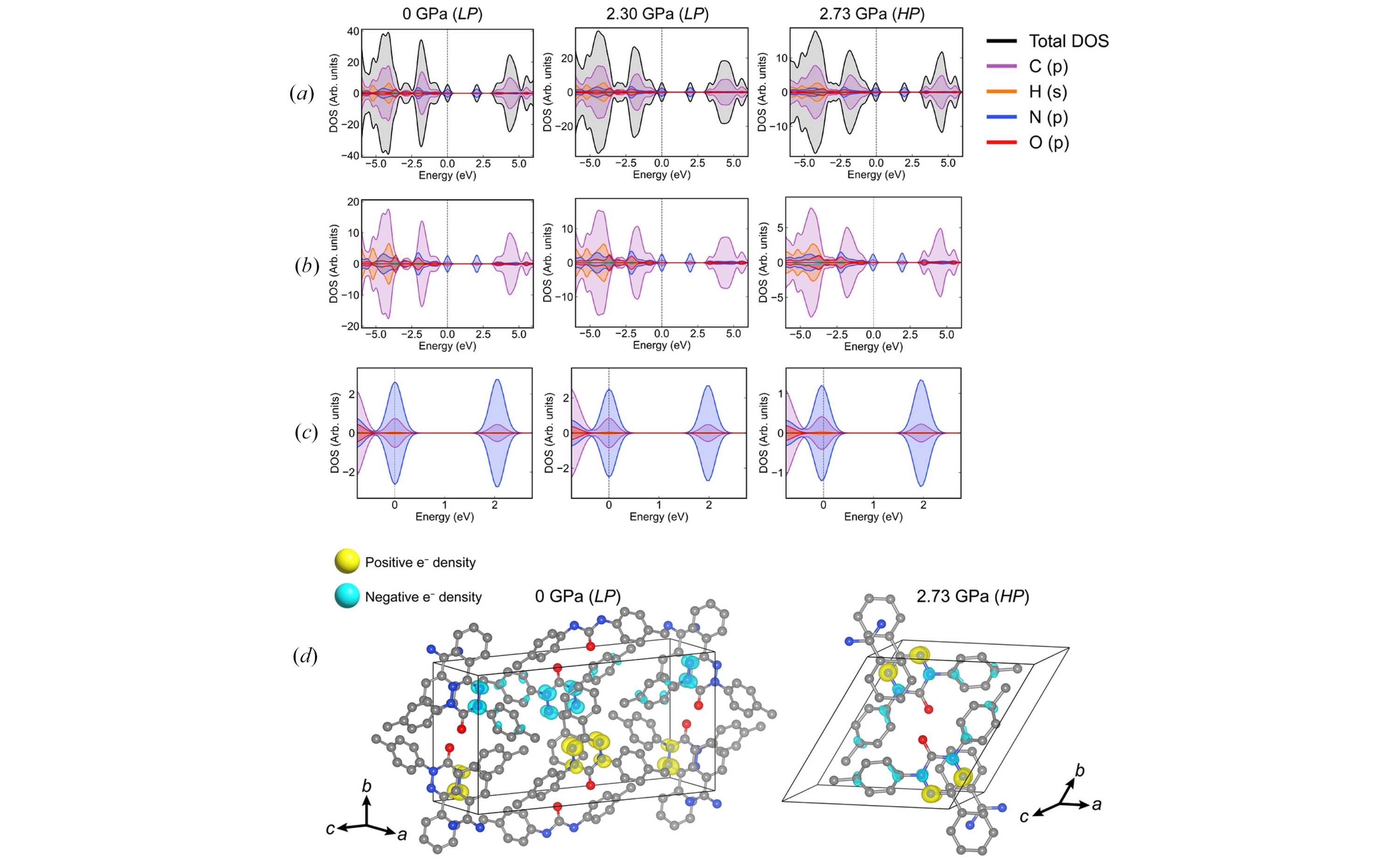

Figure 11
Density of states of pTolOV at 0, 2.30 and 2.73 GPa calculated at the Γ-point. Energy here has been scaled such that the valence band maximum (VBM) is at 0 eV. Only contributors to the DOS over 3% are shown in legend. Negative DOS refers to the spin-down channel, positive refers to spin-up. (a) Total DOS, (b) DOS with total excluded, (c) DOS around the band gap. (d) HSE06 calculated charge density difference between conductance band and valence band in pTolOV at 0 and 2.73 GPa. Isosurface value = 0.002.

STRUCTURAL SCIENCE
CRYSTAL ENGINEERING
MATERIALS

ISSN: 2052-5206

Volume 82| Part 4| August 2026|

https://doi.org/10.1107/S2052520626006220
