Crystal structure of eveslogite revealed by electron diffraction techniques: a titanosilicate mineral with structurally and compositionally distinct nanoscopic tubular units

Buchsteiner, E.; Klementová, M.; Depmeier, W.; Krivovichev, S.V.; Czank, M.; Schowalter, M.; Palatinus, L.; Rozhdestvenskaya, I.V.; Yakovenchuk, V.; Kolb, U.

doi:10.1107/S2052520626008620

Figure 4

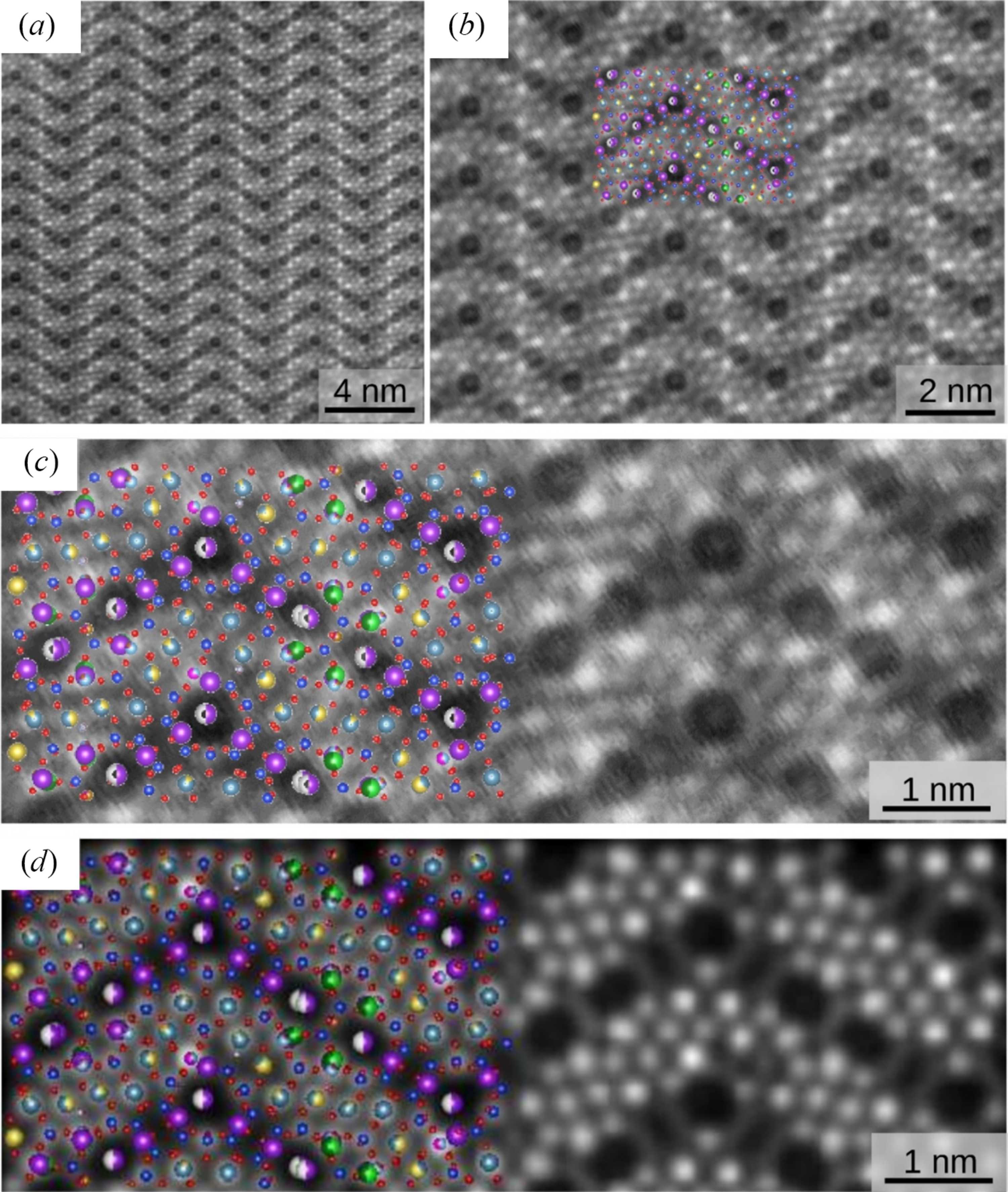

HAADF image analysis of the eveslogite (Evl) structure. (a) Filtered HAADF STEM image of Evl along the a axis. (b) and (c) Zoomed in view overlayed with the structure model of Evl. The atom positions match nicely. (d) Simulated HAADF image based on the determined Evl structure. Si is displayed in dark blue, K in purple, Ba in light green, Sr in dark green, Ca in blue-gray, Na in yellow, Ti in light blue, Nb in pink, Fe in orange, Mn in magenta, O in red, F in gray and H in white.
