Figure 1

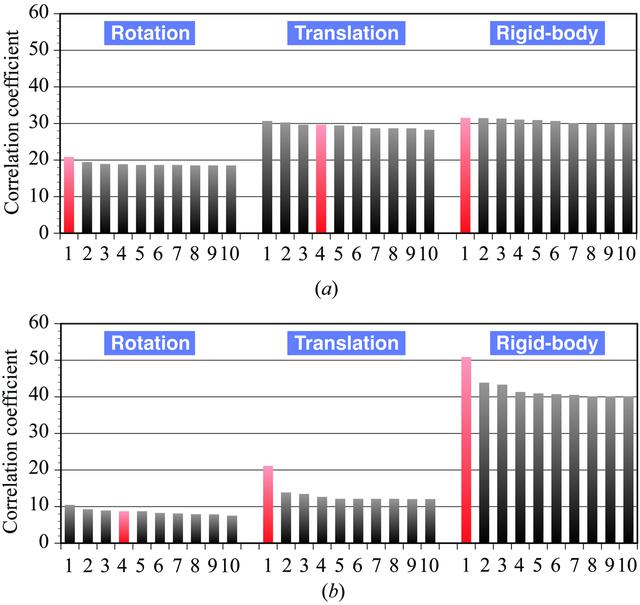

Results of MR calculations with NMR models. In each graph, (a) CHFI and (b) L30e, the top 10 peaks of the three MR steps: rotation function, translation function and rigid-body refinement are shown, in descending order. The correct solutions are coloured red and noise peaks are coloured black. |
