Figure 2

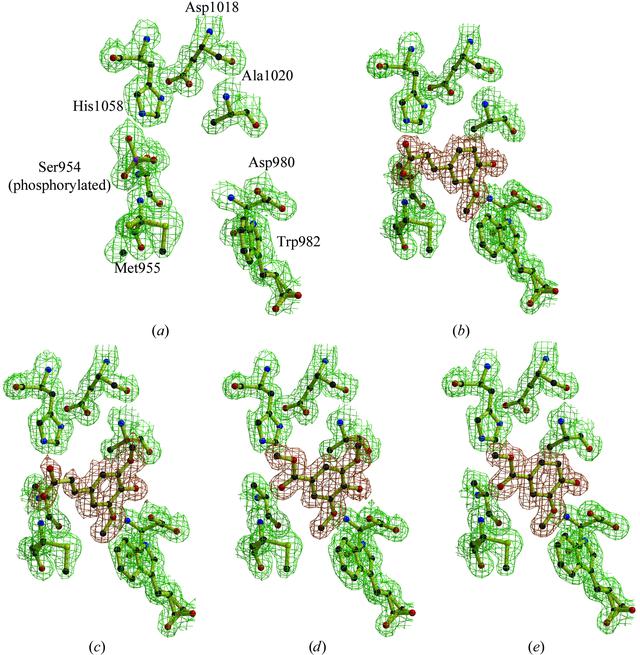

Electron densities around the active site for the different complexes. The electron densities are maximum-likelihood-weighted 2Fobs − Fcalc maps contoured at the 1σ level; electron densities are highlighted in brown for the substrates and in green for the protein. (a) Native active site showing the modified serine, (b) ferulic acid complex, (c) methyl sinapinate complex, (d) methyl syringate complex, (e) methyl vanillate complex. The figure was prepared using BOBSCRIPT (Esnouf, 1999BB4).

Journal logoBIOLOGICAL
CRYSTALLOGRAPHY
ISSN: 1399-0047
Volume 61| Part 2| January 2005| Pages 194-197
doi:10.1107/S0907444904029695
