Instrumentation for synchrotron-radiation macromolecular crystallography

Girard, E.; Legrand, P.; Roudenko, O.; Roussier, L.; Gourhant, P.; Gibelin, J.; Dalle, D.; Ounsy, M.; Thompson, A.W.; Svensson, O.; Cordier, M.-O.; Robin, S.; Quiniou, R.; Steyer, J.-P.

doi:10.1107/S0907444905039570

Acta Crystallographica Section D
Acta Crystallographica
Section D BIOLOGICAL CRYSTALLOGRAPHY

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 2

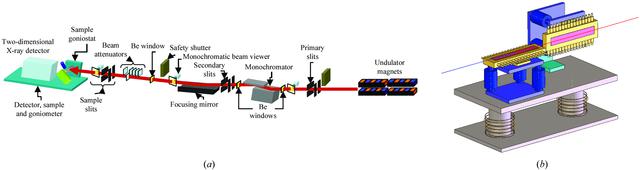

(a) A highly schematic diagram showing a synchrotron beamline from undulator to sample. Many variants of the optical theme exist [focusing by separated vertical and horizontal mirrors as in (b), pre-focusing and post-focusing mirrors, focusing monochromators etc.]. (b) A schematic drawing of the installation of a Kirpatrick–Baez mirror pair on the SOLEIL PROXIMA 1 beamline. The beam enters from the right-hand side of the drawing and is successively focused in the horizontal (vertically orientated mirror) and vertical directions.
