![[Figure 1]](ba5082fig1mag.jpg)
|
|
Figure 1

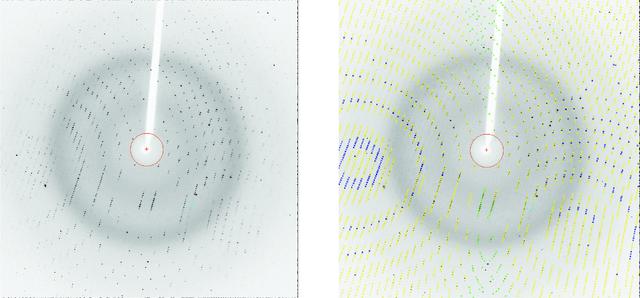

A typical macromolecular diffraction pattern for a strongly diffracting crystal. The original image is shown on the left, with the predicted reflections shown superposed on the right. Each reflection is shown as a box, colour-coded blue and yellow for fully recorded and partially recorded reflections, respectively, and green for reflections with a width greater than 5°. |
