Figure 3

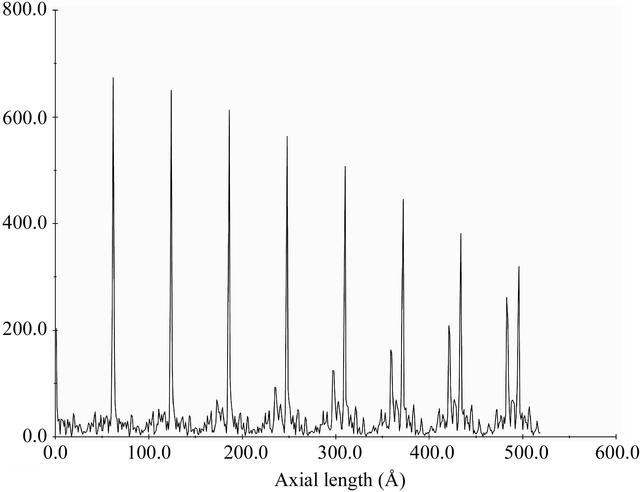

A one-dimensional Fourier transform of projected scattering vectors. With the crystal orientation as shown in Fig. 2[link], the scattering vectors projected onto the X axis will consist of regularly spaced clusters corresponding to reciprocal-lattice planes h = 1, h = 2, h = 3 etc. The Fourier transform will consist of several large discrete maxima, where the spacing between adjacent maxima corresponds to the real cell spacing, in this case the a axis.

Journal logoBIOLOGICAL
CRYSTALLOGRAPHY
ISSN: 1399-0047
Volume 62| Part 1| December 2006| Pages 48-57
doi:10.1107/S0907444905039107
